Description
Technical parameter of the full function diesel test stand:
| Parameter | Details |
| Output Power | 11/15KW (based on functions chosen) |
| Rotation Speed | 0～4500RPM/Min |
| Rotation Speed Control | Inverter |
| Power Supply | 380V,220V 50/60HZ; 3-phase power supply:380V/50Hz, 220V/60HZ |
| Rail Pressure | 0-2500bar |
| Rail Pressure Precision Tolerance | ±5 Bar |
| Fuel Tank Capacity | 30/20 liters |
| Fuel Temperature Controlling | 40±2°C |
| Fuel Tank Filtration | less than 5μm |
| Double series of graduates | 45cc/150cc |
| D.C.Supply | 12V/24V |
| Feed Pressure | low: 0～0.4MPa,high: 0～4Mpa |
| Air Pressure | +0～0.3MPa, -0.03～0Mpa |
| Flywheel inertia’s moment | 0.8KG·M2 |
| Center height | 125MM |
| Diesel test bench size | 2200×1430×1900 mm |
| Weight | 1500kgs |

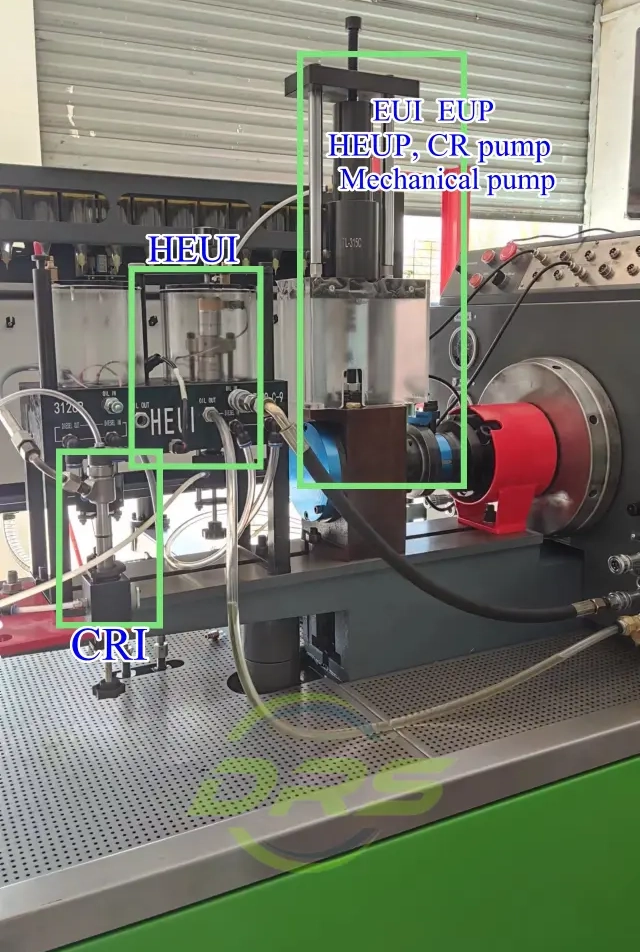

3 separate working stations for high efficienct testing different injector pump;

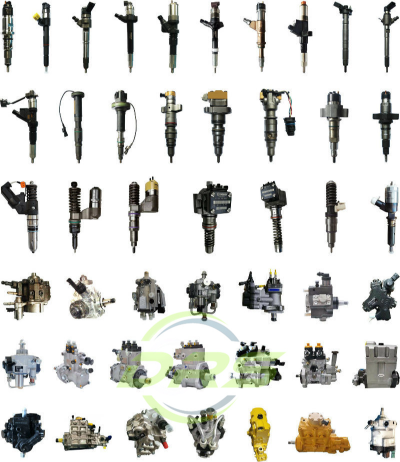

Applications for electric injector and pumps

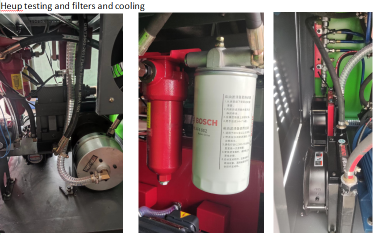

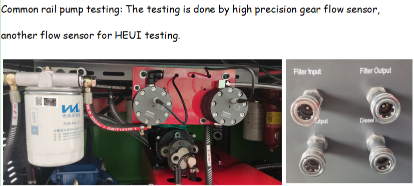

Machine inside detailed pictures:

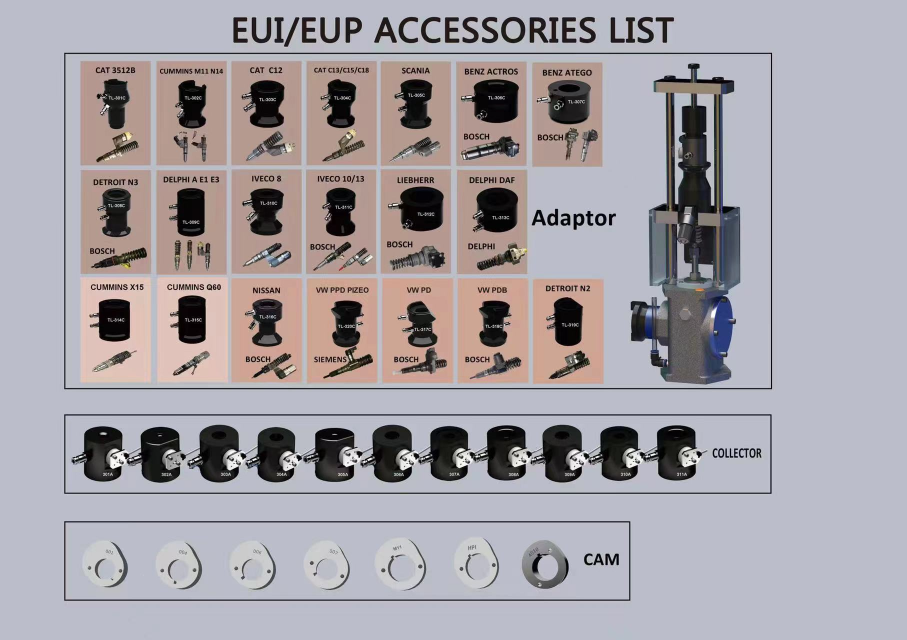

Accessories
| Category | Details |
| EUI/EUP Accessories | Full set of adaptors, collectors, CAMs for EUI/EUP system testing |
| HEUI Accessories | CAT 3126B, CAT 3412E, CAT C7/C9, CAT 3126A, FORD G2.8, FORD G2.9, NAVISTAR, ISUZU test kits and fixtures |
EUI EUP testing:
Function of this diesel test bench
| Category | Details |
| Mechanical Pump Testing | Test all Mechanical Injection Pumps (inline, VE, Rotationary pumps) |
| Common Rail System Testing | Test Bosch(CP1/CP2/CP3/CP4/CP5/CP6), Denso(HP3/HP4/HPO/HP5/HP6/HP7), Delphi(CRSP), Siemens (DCP) common rail injectors and pumps; CAT320D CR pumps, CAT 336E/C9.3/CAT340D, Bosch CB28 pumps, DELPHI F2E 3+3 Injector, oil station |
| EUI/EUP System Testing | Test EUI/EUP unit injectors and pump, including MTU unit injectors,Cummins PT injector pump |
| HEUI System Testing | Test Caterpillar HEUI C7 C9 and pump, 3412/3408/3116, ISUZU, FORD 6.0, HEUI G2.9, injectors; Test Cummins HPI 1SX15 QSK60, unit injectors, XPI CR injectors |
| Injector Diagnostic Testing | BIP-injector responding time, solenoid valve capacity, resistance, inductance measured |
| Coding Function | Generating code for Bosch-IMA coder, Bosch-ISA coder, Denso QR coder, Delphi C2i,C3i coder, Siemens VDO-IIC coder |
| Optional Function | Test and coding for 6 common rail injectors simultaneously (Optional) |
Software advantage of the CRDI test bench
| Category | Details |
| Multi-Language Support | Multi-language test plans for different brands calibration machine |
| Test Data Library | Nearly 10,000 applications for diesel injectors and pumps calibrations |
| Calibration Algorithms | Intelligent algorithm for automatic fuel quantity calibration of new injectors and pumps |
| Automatic Testing & Analysis | Automatic test under different working conditions, automatic analysis of measurement results, and generation of reports |
| Customizable Parameters | User can customize parameters such as rail pressure, pulse width, and fuel injection time |
| Data Management & Upgrades | Data backup, system software and function upgrade by remote control |
| Test Data Accuracy | Testing data same as Bosch, Denso, Delphi original data, accuracy can reach genuine data level |
| Real-Time Display & Reporting | Real-time display of fuel injection and back-flow curve, automatic testing of fuel quantity under all working conditions, automatic report generation |
| Control System | Industrial computer real-time control, Windows operating system, built-in display, touch screen operation; full automatic operation for common rail system test bench |
