Description

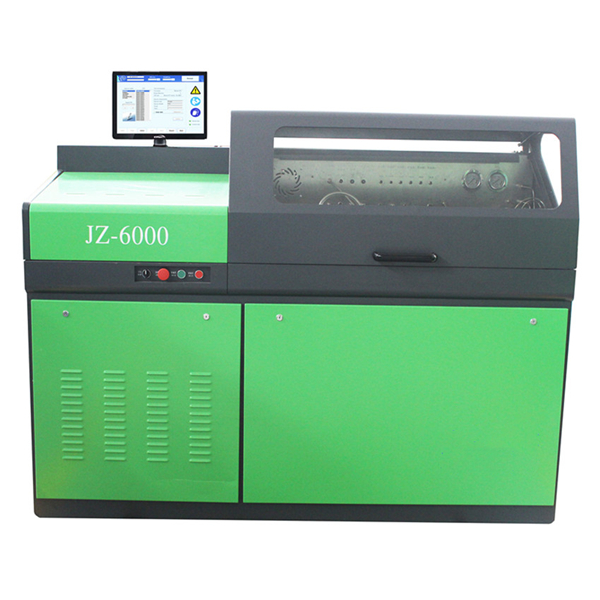

Common Rail Test Bench
Parameter:
- Working Voltage: AC380V OR 220V Output Power 11~15 KW
- Rail Pressure Range 0~2700 Bar ( as requests)
- Fuel Pump Rotation Speed: 0 ~ 4000 RPM
- Diesel Filter Accuracy < 5 U
- Injector Sensor Range 0.1 mL – 600 mL
- Pump Sensor Range 10 mL – 3000 mL
- Fuel tank capacity 80L
- Dimension & weight 190 * 100 * 170 ( cm ) 900 kgs
Functions:
- The high pressure common rail test bench application:
Bosch,Delphi,Denso,Siemens,common rail injector( piezo included) and Bosch CP1/CP2.2/CP3,Delphi CRSP,Denso HP3/HP4, Denso HP0 pump. - UIS UPS test – unit injector / pump, single and dual solenoid EUIs.
HEUI test – CAT C7 C9 H3126 - Common rail pump test: measure fuel supply and return volume, pump inner pressure, feeding pressure, sealing, ZME valve performance.
Common rail injector test: measure the injection volume under full-loaded(VL)idling(LL),pre-injection(VE),and backflow volume.
Check the sealing performance of the high pressure common rail injectors. - Check the solenoid valve of the common rail injector.
- Clean the injector and pump before testing.
- User can add and edit the data by themselves.
- Testing 6 common rail injectors continuously (optional )
- Save and print the testing report & customer information( print is optional).
Features:
- Electronic quantity measurement
- Germany flow sensor is equipped on this diesel fuel common rail test bench
- Injector and pump testing by different flow sensor, to ensure testing accuracy and longer life time of the flow sensors.
- Electronic inlet pressure control for pump fuel supply(ZME/VCV).
Common rail rail pressure is controlled accurately by DRV/PCV. - Cooling system: Condensors or industrial refrigerator(optional)
- Genuine Bosch pump and DRV used on this model 819 common rail test bench
- Simple Common rail injector and pump mounting
- Hood protects for flying parts
- All high pressure pump drive channels have short circuit protection function.
Software advantage:
- Full-automatic operation, no need to set up the data.
- Powerful test plans, more than 9000 types for different injectors & pumps
- User can choose single step or multiple steps freely.
- Rich information stored (related nozzles, vavles…), same as Bosch ESI
- Computer can detect the diesel common rail test bench performance( connection,DRV,pressure sensor…)
- Support Multi-language( English, Spanish, Russian,portugues, Francais, Italiano…)
